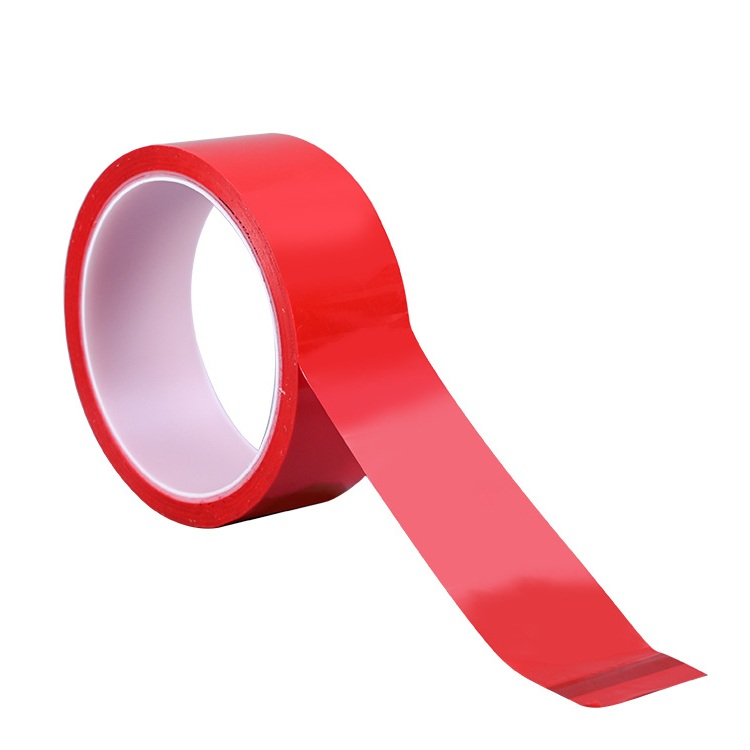

High Temperature Polyester Film Mylar Tape for Transformer Insulation

Short Description:

Polyester Film Mylar tape features a polyester film base coated with flame-retardant acrylic adhesive. Available in black, green, red, white, blue, light yellow, dark yellow, pink, and clear, this tape offers excellent flame resistance and chemical solvent resistance. It is primarily used for insulation wrapping in transformers, motors, capacitors, and other electronic components.

Send email to us Download as PDF

Product Detail

Product Tags

Features of Mylar Tape

1. Good holding power
2. Chemical resistance
3. Solvent Resistance
4. Flame Retardant
5. Remove cleanly without residue

Technical Data of Mylar Tape

Carrier	Polyester film
Adhesive	Coated with acrylic adhesive
Description	Test result	Unit
Total thickness	50±2	mic
Carrier thickness	25	mic
Adhesive thickness	25	mic
Tension Strength	3	KN/M
Elongation at break	45	%
Peel adhesion	300	N/25mm
Breakdown voltage	4.2	KV
Coefficient of heat-resistant	-10~+130	℃
